Products Description

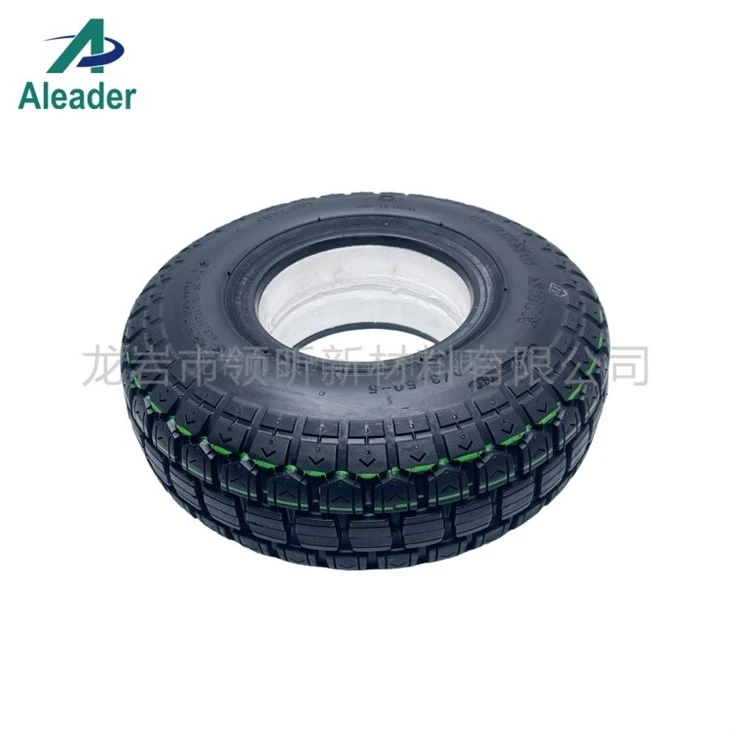

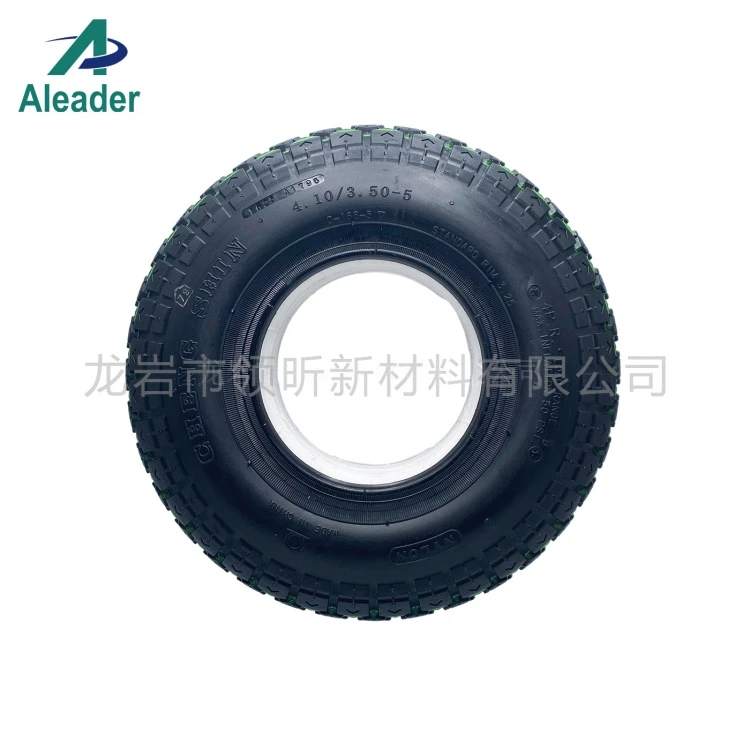

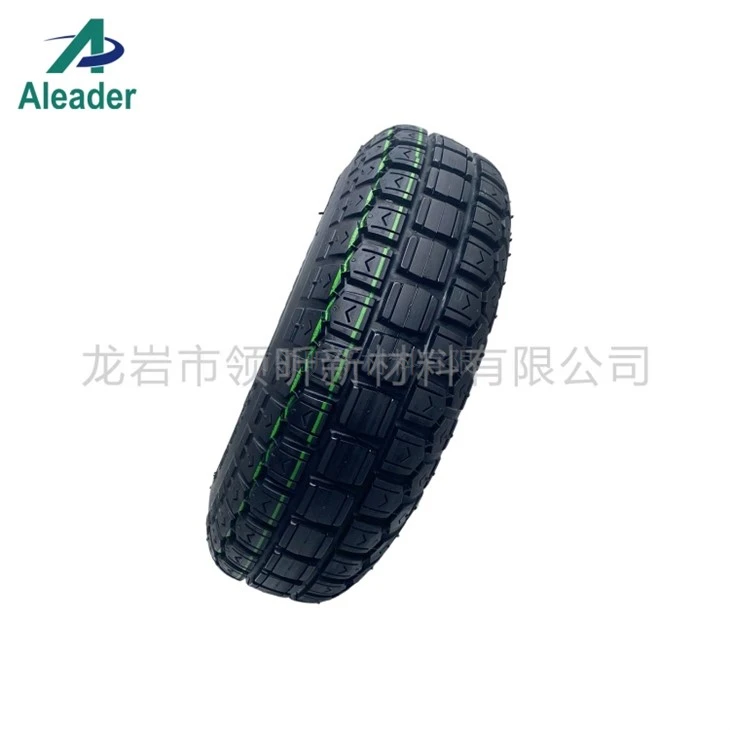

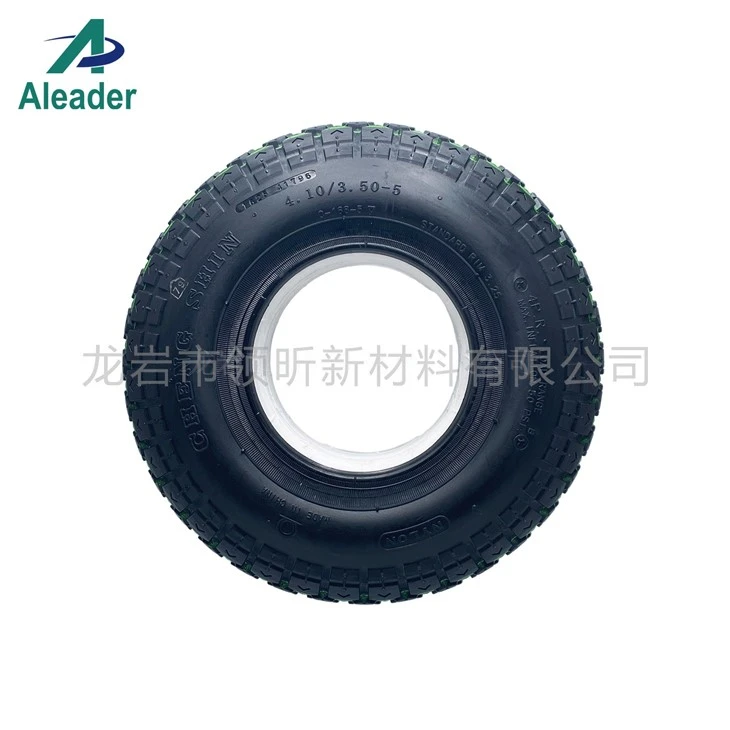

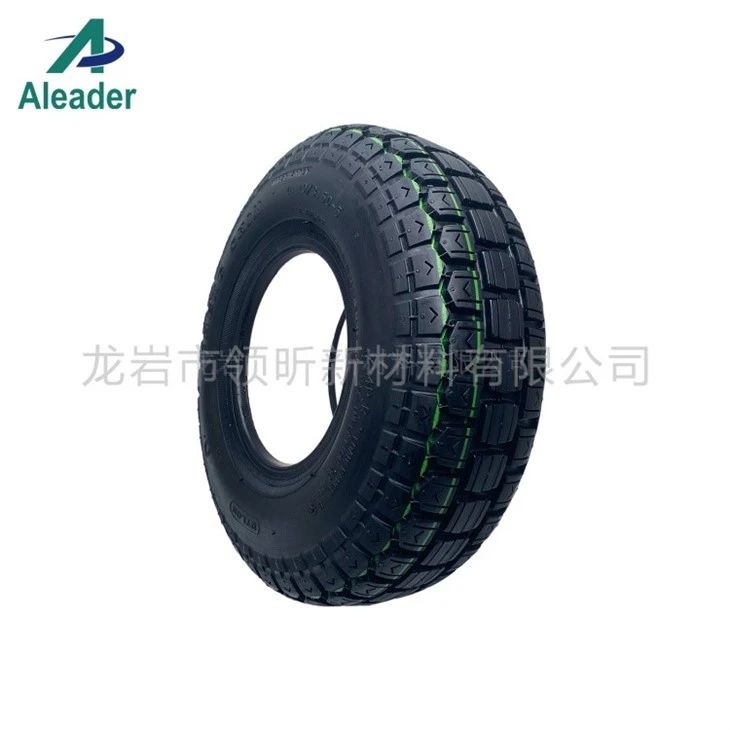

Foam Filled Tire

Foam Filled Tyre is a maintenance‑free, airless solution designed for electric wheelchairs, mobility scooters, industrial carts, AGVs, and other equipment. Instead of a traditional air‑filled inner tube, we use high‑resilience polyurethane (PU) foam as the filler material, eliminating punctures, air leaks, and the need for regular pressure checks.

This is not a simple solid tire. It features a dual‑construction: a durable rubber outer casing + a micro‑cellular PU foam core. The rubber layer provides abrasion resistance, grip, and UV protection; the PU foam core delivers cushioning, shape recovery, and consistent elasticity. The result is a tire that rides nearly as comfortably as a pneumatic tire, yet requires zero maintenance.

Product Specifications

Size	4.10/3.50-5
Rubber Tire Brand	Cheng Shin
Tread	C168
Material	Rubber and Polyurethane
Filler	Polyurethane
Color	Grey/Black
Delivery time	60-75days

Key Features

Completely Puncture Proof – No air, no blowouts. Sharp objects (nails, glass, road debris) cannot disable the tire.

Zero Pressure Maintenance – Never pump, patch, or seal again. Ideal for users or applications where service access is limited.

Excellent Shock Absorption – The micro‑cell PU foam structure absorbs road vibration, delivering a smooth, quiet ride.

Temperature Tolerant – Remains elastic from -20°C to 50°C. No hardening in winter, no softening under summer heat.

Stable Load Capacity – Supports up to 150kg per wheel without permanent deformation. Suitable for rehabilitation aids and logistics equipment.

Micro‑Structure of Our PU Foam Filled Tire

Our PU foam features a uniform open‑cell micro‑structure (verified by scanning electron microscope). Cell diameters range from 50 to 120 microns, evenly distributed. This interconnected open‑cell design allows the tire to rapidly dissipate stress under load and fully recover its original shape when unloaded.

Key performance benefits from this structure:

High resilience – Quickly rebounds after compression, resulting in low rolling resistance and easy pushing.
Quiet operation – Internal friction of the foam absorbs vibration and noise; suitable for indoor use without disturbing others.
Long term stability – Unlike conventional solid rubber tires, PU foam does not harden or crack with age. Service life typically 3–5 years.
Environmentally safe – Materials comply with RoHS and REACH; no heavy metals, no harmful emissions.

Our Company

About Aleader

We are a factory specialised in polyurethane elastomers and micro‑cellular foam materials. Our operations are managed from Xiamen (since 2016), with production based in Longyan, Fujian province. In addition to foam filled tires, we manufacture high‑resilience PU components, integral skin foam, PU sponge, and rigid PU inserts for carbon fibre wheelchairs.

Our team has over 15 years of experience in PU formulation. We maintain a fully equipped testing laboratory covering resilience, ageing, dynamic load, abrasion, and more. Our products meet ISO7176, GB/T 18029, RoHS, and REACH standards. Through long‑term technical collaborations with the Xiamen Institute of Rare Earth Materials (Chinese Academy of Sciences) and the College of Polymer Science & Engineering (Sichuan University), we continuously optimise foam density, cell distribution, and rebound ratio – ensuring batch‑to‑batch consistency.

Quality Assurance & Certifications

We operate a strict ISO9001:2015 quality management system, covering every stage from PU prepolymer preparation, foaming, curing, to final assembly with rubber outer tires. Our in‑house laboratory is equipped with a universal testing machine, Akron abrasion tester, compression set tester, and temperature cycling chamber.

Every batch of foam filled tires is sample‑tested for:

Compression set (72h at 70°C)
Dynamic load road test (simulated 300km of real use)
Puncture resistance (steel nail press‑in test)
UV ageing (ensures no powdering under long‑term sunlight)
We are confident in providing stable, reliable flat‑free tires to global wheelchair brands, mobility equipment manufacturers, and robotics companies.

Why Choose Us

Direct factory – No middlemen, more competitive pricing for the same quality.
Formula ownership – We control PU foam density, cell size, and rubber tread patterns. Customisation is truly possible, not just limited standard items.
Low MOQ accepted – Starting from 300 pieces; sample orders and trial runs are welcome.
Export experience – Shipped to Europe, North America, Japan, Korea, and Southeast Asia. Familiar with market entry requirements and can supply necessary certificates.
Direct after‑sales – Quality issues are handled directly by our factory. Short feedback loop, fast response.

Some of Our Partners (names anonymised)

Over the years, we have built long‑term supply relationships with several well‑known wheelchair brands, scooter manufacturers, and industrial equipment companies. Customer feedback consistently shows that our foam filled tires have a return rate below 1% – far lower than conventional pneumatic tires or cheap solid tires – significantly reducing their after‑sales service costs.
