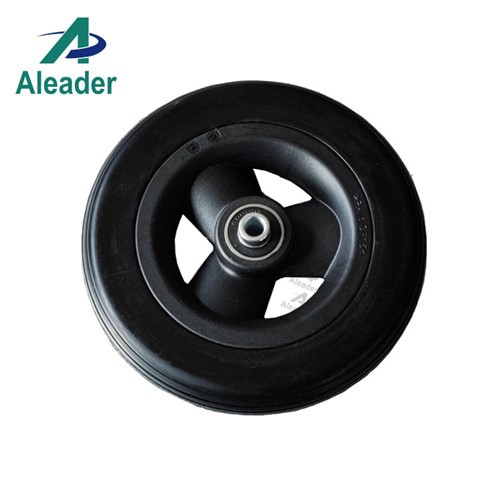

OEM PU Solid Caster Wheels and Tires for Manual Wheelchairs 6 Inch
1. Product Introduction
Polyurethane Tire, made of micro cellular elastomer material, has good resilience. Its micro porous inner wall structure has the effect of shock and sound-absorption, making users feel comfortable while in use. With its outstanding performance in noise reduction, the polyurethane tire is used as a super silent tire.

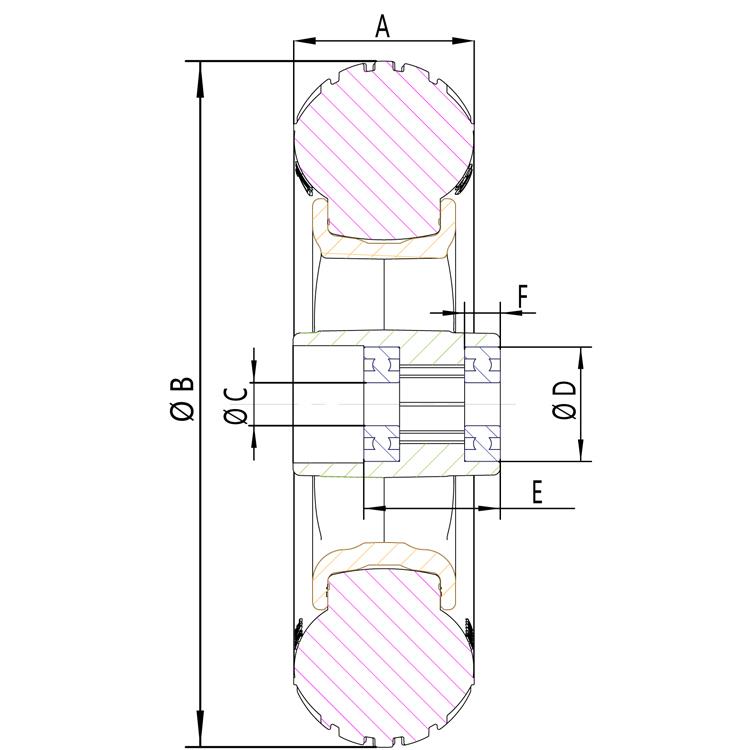

2. Product Parameter（Specification）of 6 Inch PU Solid Tires For Manual Wheelchairs
|
Product Name |
6 Inch PU Solid Tires For Manual Wheelchairs |
||
|
Color |
Grey/Black |
Usage |
Front Wheel |
|
Tire Material |
PU |
Rim Material |
PA+15%GF |
|
Tread |
Rib |
Tire hardness(HA) |
80±5 |
|
Wheel OD(mm)(B) |
150 |
PU Tire Weight(g) |
210±15 |
|
Tire Width(mm)(A） |
30 |
Wheel Weight(g) |
350±15 |
|
Axle Size(mm)(C) |
8 |
Hub Length(mm)(E） |
31.5 |
3. Solid Tires’ Features and Advantages
(1). Resistant to sunlight, oxygen, ozone, and several other environmental factors.
(2). Resistance to Corrosion: It is resistant to water,oil,dirt,acid and alkali.
(3). Load Bearing Capability: A polyurethane tire can easily support twice the weight that a rubber tire can support
(4). Puncture Proof: The Polyurethane Tires are solid tires that are no afraind of nails, shards, or broken piece of glass.
(5). Maintenance Free: The Poly tire is solid structure and not air pressure for load support.They cannot leak or go flat, and never need to be pumped up or repaired.
4. Aleader's Polyurethane Tires' Tests
In our factory,we perform the following tests to ensure that all our products operate at good performance during their long service life:
Rolling Drum Test
Tension/Compression Force Analysis
Side Impact
Drop Testing
Static Load
Circle Track
Coefficient of Friction
Torque
Noise Test
Bump Test
5. Certificates of Our Solid Tires
ISO9001: 2015
ROHS 2.0, REACH, PAHS, EN14372:2004, TUV Rheinland
6. The Assembly Process of Solid Tires
A. Preparation: preparation of semi-finished tires, rims, screws, nuts, etc.; installation and adjustment of assembly machine;
B. Assembling: Assemble the tire according to the standard requirements of the filled tire assembly;
C. Finished product: The finished product needs to be tested for side impact and runout; after passing the test, it can be cleaned and packed.
