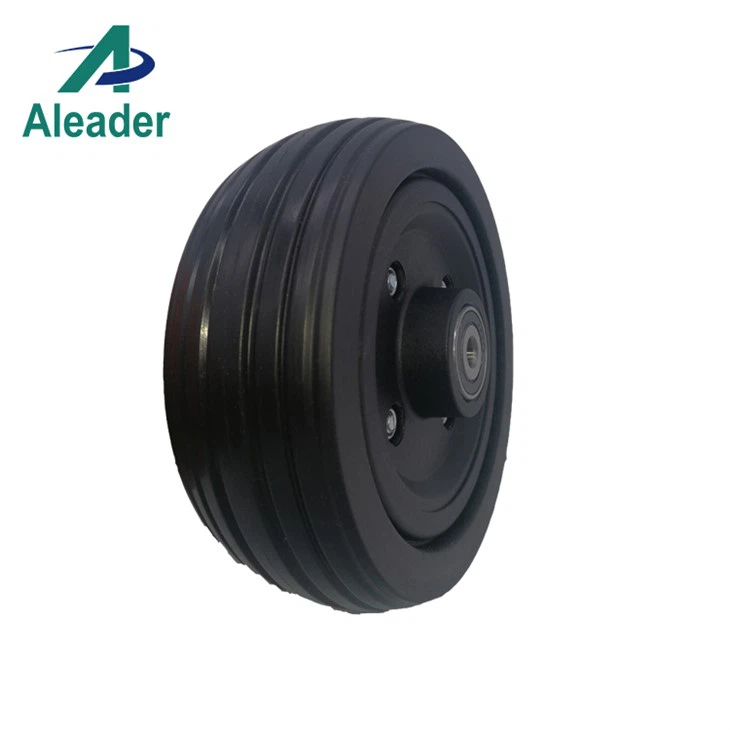

Polyurethane Tires and Wheels for Front Wheels 6x2

Specification:6x2.
Tire Material:Polyurethane.
Rim Material: PA+15% gf.
Tread: Rib.
Overall Diameter:147.5 mm.
Hub width:63.5mm.
Hardness:around 80.
Load Capacity: 50kg.

Send InquiryChat Now
Product Details

1. Product Introduction

Polyurethane Solid Tire, simply called PU Tire, has one kind of solid structure. Its main material is microcellular polyurethane elastomer. For the 6 inch Polyurethane Tire, it is usually used as the caster wheels of electric wheelchairs.The Load capacity of this tire is around 50kg.



2. Product Parameter(Specification)of Polyurethane Tires For Front Wheels

1 Wheels' Structure.jpg



Product Name

Polyurethane Tires For Front Wheels 6x2

Color

Grey/Black

Usage

Front Wheel

Tire Material

PU

Rim Material

PA+15%GF

Tread

Rib

Tire hardness (HA)

80±5

Wheel OD (mm)(B)

147.5

PU Tire Weight(g)

280±15

Tire Width (mm)(A)

49

Wheel Weight(g)

560±15

Axle Size(mm)

8/12

Hub Width (mm)(E)

63.5


3.Polyurethan Tire’s Features and Advantages

3.1 Safety

Polyurethane Tire, with its solid structure, keeping users away from the worries of flat tire,air leakage,punctured easily and frequent maintenance, provides users a safe and convenient experience.


3.2 Noise reduction function:

Polyurethane  Tire, made of micro cellular elastomer material,has good resilience.Its micro porous  inner wall structure  has the effect of shock absorption, sound-absorbing,making users feel comfortable while in use. Picture 1(left) is the observation effect for the product section under 400 ~ 500 x magnification microscope .With its outstanding performance in noise reduction,the polyurethane tire is used as super silent tires.


2 Polyurethane Solid Tires.jpg


3.3 Eco-friendly

While applying the craft of entire water foaming without the HFCS foaming agent,the Polyurethane Stroller  Tire does not have bad effect on the ozone layer. Furthermore,the feature of good bio compatibility and mold resistance,makes the polyurethane  stroller  tire one excellent  environmental tire.


3.4 Durability

The high performance in the aspects of abrasion resistance, radiation resistance,ozone resistance, oil resistance, weather-resistance and  aging resistance.and acid and alkali  resistance to a certain, decides it can be used at least 5years,making it the best choice for outdoor vehicles.



4.Polyurethane Tires’ Production Technology: SPIN-Cast Molding

The process of spin-cast molding is used to insert foam fill into tires. This process helps create a dense, firm tread area while keeping the sidewall area flexible. The distribution of the foam fill is even and accurate ensuring excellent shock absorption. This helps provide the user with a smooth ride, every time.


3 Solid Tires' SPIN-Cast Molding Machine.jpg



5. Aleader's Polyurethane Tires' Tests

In our factory,we perform the following tests to ensure that all our products operate at good performance during their long service life:

Rolling Drum Test

Tension/Compression Force Analysis

Side Impact

Drop Testing

Static Load

Circle Track

Coefficient of Friction

Torque

Noise Test

Bump Test


4 wheelchair wheels's Test.JPG


6. Certificates of Polyurethane Tires

ROHS 2.0, REACH, PAHS, EN14372:2004, TUVRheinland

Solid Tire Test Report

7.Our service:

Enjoy Our One-stop Service

We can provide each customer with purchasing, logistics, producing, quality control, documentations and product warranty.



OEM/ODM Capability

We have capability to design and produce a wide range of new models according to customers' requirements. But some models have to be asked for moulds charge.



Quality Items with Warranty

Almost of our models, we can provide one year warranty, and spare parts.



8.Packaging and Delivery

6 delivery and packaging.jpg

9.FAQ

Q1. What is the sample policy?

We charge sample fees and deliver by express via UPS, FEDEX, DHL etc., freight charges are paid by customers.

Q2. How long is the sample lead time?

Usually samples are ready to ship within Five to Seven working days.

Q3. Do you accept OEM service?

Yes, OEM is welcomed for all production lines including logos and labels. With decades of research and development, we are confident that we are able to satisfy your needs.

Q4. Can I design the packaging for my products?

Yes, packaging can be printed with your logo and your local language.

Q5: What is the warranty for your products?

Our warranty is one year for the main frame.
