4.10/3.50-4 Power Wheelchair Wheels

1. Product Introduction of Foam Filled Tires 4.10/3.50-4 Poly Foam Filled Wheels 4.10/3.50-4 Is Mainly Used For The Wheels Of Electric Wheelchairs and Mobility Scooters. Its Tire Consists of Two Parts: Rubber Outer Tube, Microcellular Polyurethane Elastomer Filled or Inserted inside. The Brand...

Send InquiryChat Now
Product Details

1. Product Introduction of Foam Filled Tires 4.10/3.50-4

Poly Foam Filled Wheels 4.10/3.50-4 Is Mainly Used For The Wheels Of Electric Wheelchairs and Mobility Scooters. Its Tire Consists of Two Parts: Rubber Outer Tube, Microcellular Polyurethane Elastomer Filled or Inserted inside. The Brand Of Rubber Tires mainly is Cheng shin Or Innova. Its Max. Loading Is About 75KGS per Wheel.

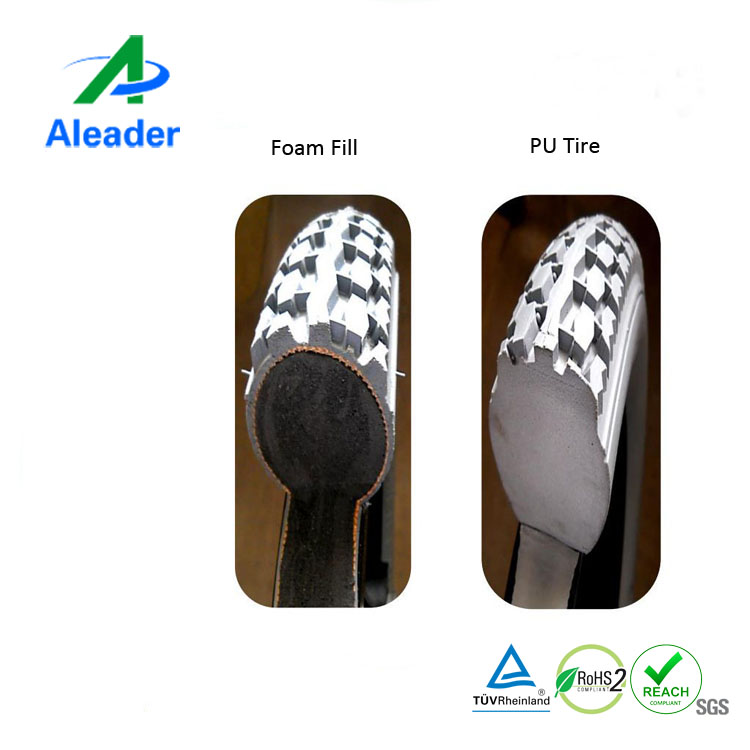

1 foam filled tires.jpg



2. Product Parameter(Specification)of 4.10/3.50-4 Power Wheelchair Wheels

Product Name

4.10/3.50-4 Power Wheelchair Front Wheels

Color

Grey/Black

Usage

Front Wheel

Rubber Tire Brand

Innova

Filler

Polyurethane

Tread

IA2800

Bead Width(mm)

60

Wheel OD(mm)(B)

254

Rubber Tire Weight(g)

900±50

Wheel Width(mm)(A)

77

Filler Weight(g)

900±50

Hub Width (mm)(E)

47

Axle Size(mm)

12/15

MOQ

300PCS

Model NO.

WF1030A1547G34

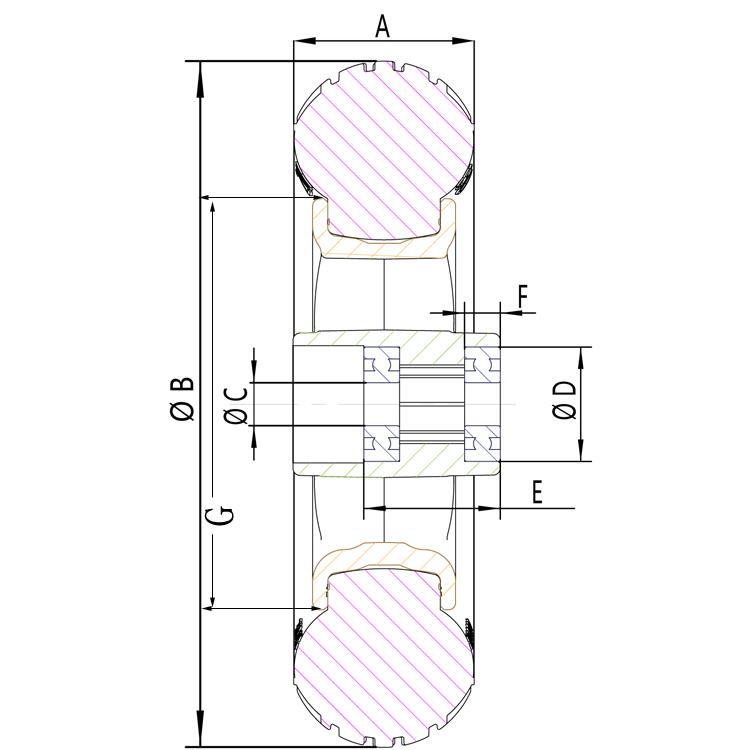

2 Wheels' Structure.jpg


Product Name

4.10/3.50-4 Power Wheelchair Rear Wheels

Color

Grey/Black

Usage

Rear Wheel

Rubber Tire Brand

Innova

Filler

Polyurethane

Tread

IA2800

Bead Width(mm)

60

Wheel OD(mm)(B)

254

Rubber Tire Weight(g)

900±50

Wheel Width(mm)(A)

77

Filler Weight(g)

900±50

Hub Width (mm)(E)

45

Axle Size(mm)

19-5*5

MOQ

300 PCS

Model NO.

WF1030A1945G34



3. Solid Rubber Tire’s Features:

A. Can be customized: Since polyurethane is produced chemically,a number of variations are possible.The density and physical characteristics of the material can be modified according to the end use.

B. Safety: Solid Rubber Tire, with its solid structure, keeping users away from the worries of flat tire,air leakage,punctured easily and frequent maintenance, provides users a safe and convenient experience.

C. Load Bearing Capability: A solid rubber tire can easily support twice the weight that a rubber tire can support.

D. Durability

The rubber outer tubes is excellent in the aspects of abrasion resistance, oil resistance, weather-resistance.


3 Solid Rubber Tires.jpg

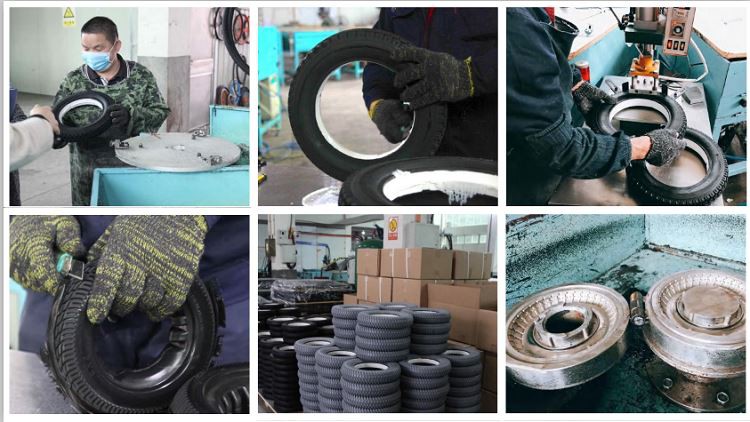

4. Poly Foam Filled Tire’s Production Technology: SPIN-Cast Molding

The process of spin-cast molding is used to insert foam fill into tires. This process helps create a dense, firm tread area while keeping the sidewall area flexible. The distribution of the foam fill is even and accurate ensuring excellent shock absorption. This helps provide the user with a smooth ride, every time.


4 Solid Tires' SPIN-Cast Molding Machine.jpg



5. Certificates

ROHS 2.0, REACH, PAHS, EN14372:2004, TUVRheinland

5 Tires' certificate.jpg


6. Our Services:

1. Pre-sale services Act as a good adviser and assistant of client enable them to get fast and generous returns enquiry

1) Select sample model

2) Design and manufacture products according to clients' special requirements

3) Train technical personnel for clients

2. Services during the sale

1) Recheck and accept products ahead of delivery

3. After-sale services

1) Provide considerate services to minimize client's worries

2) Help client to solve the install question

3) Take responsibility if any technical problem



7. Our Company

Xiamen Aleader Tire & Wheel Industrial Co., Ltd. was established in 2010, located in the beautiful coastal city of Xiamen, Fujian province.We are a professional manufacturer focused on the research and production of high performance PU tires.The company's main products are PU tires and PU foam filled solid tires etc.With the superior performance in abrasion proof, durability, high load capacity and  anti puncture, the PU tires are widely used in high-end market of wheelchairs, bicycles, strollers and engineering vehicles. Having a team with more than 15 years experience in the polyurethane field, we can ensure to provide u the most professional and good quality products and services. All of the products can meet the requirements of ISO7176 standard and have passed thetesting requirements of ROHS and REACH. Some of them can even meet the German GS standards for children's products.Our main markets are the United States, Britain, Germany, Canada, Japan and other countries and regions in the world.


6 PU foam Machine (1).jpg


7 Testing Machine.JPG



9.FAQ

1. What is the normal delivery of the order?

---Our normal delivery for one order is 20-25 days.

2. How is the warranty period for your products?

---The usual warranty period for our items is 1 year.

3. Can you accept the small order as start?

--- Yes, we also operation the combined container for our clients, and besides, we manage to offer the combined container service from clients’other supplier.

4. What is the payment term that you can accept?

---We normally do L/C, T/T,PAYPAL,ESCROW, and D/P

5. Do you make the OEM ordering?

---Yes, we are very experienced in making the OEM ordering.

6. What is your advantage compared with other vendors?

---We are the manufacturer with more than 15 years of experience in the polyurethane field. We can custom wheels as per ur requirement.
