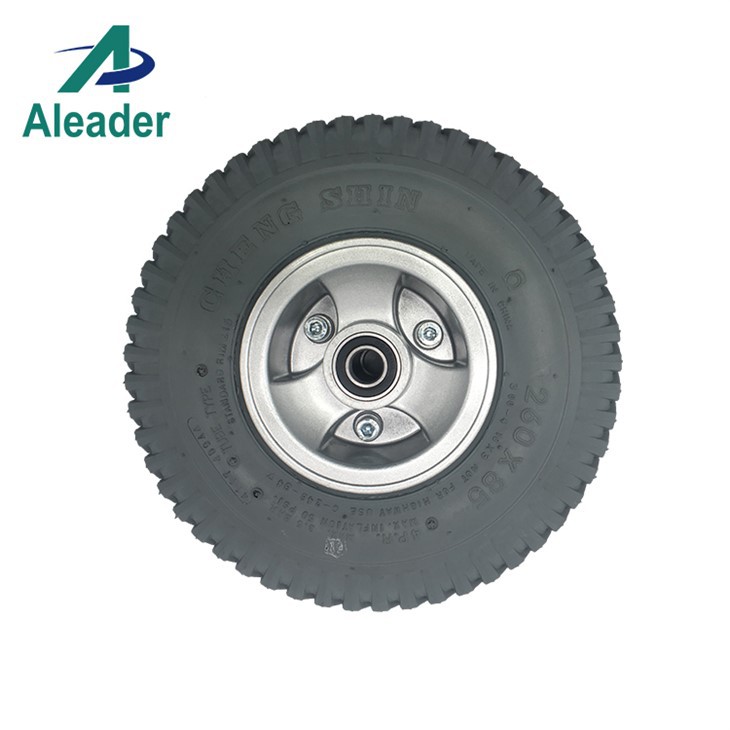

3.00-4 (10x3) Foam Filled Wheels Wheelchair Spare Parts

3.00-4 (10x3) Foam Filled Wheels Wheelchair Spare Parts

Size: 3.00-4 (260x85)
Rubber Tire Brand: Cheng Shin.
Rim Material: Aluminum
Tread: C248.
Material: Rubber and Polyurethane.
Overall Diameter:252mm.
Wheel Width: 76mm
Bead Width: F70mm.
Load Capacity: 75kg.

Send InquiryChat Now
Product Details

1. Product Introduction of 3.00-4 (10x3) Foam Filled Wheels Wheelchair Spare Parts

Poly Foam Filled Wheels Are Pneumatic Tires Filled With Urethane Foam. Its Tire Consists of Two Parts: Rubber Outer Tube, Microcellular Polyurethane Elastomer Filled or Inserted inside. The Brand Of Rubber Tires mainly is Cheng Shin or Innova. Its Max. Loading Is About 75KGS per Wheel.

Foam Filled Wheel



2. Product Parameter(Specification)of 3.00-4 (10x3) Foam Filled Wheels

2 Wheels' Structure.jpg


Product Name

3.00-4 (10x3) Foam Filled Wheels Wheelchair Spare Parts

Color

Grey/Black

Usage

Wheelchair Wheel

Rubber Tire Brand

Cheng Shin

Filler

Polyurethane

Tread

C248

Bead Width(mm)

70

Wheel OD(mm)(B)

252

Rubber Tire Weight(g)

800

Wheel Width(mm)(A)

76

Filler Weight(g)

1050

Hub Length(mm)(E)

94

Axle Size(mm)

8


Item:

3.00-4 (10x3) Foam Filled Wheels Wheelchair Spare Parts

Material:

Polyurethane and Rubber

Model Number:

WF1030A

Size:

3.00-4

Color:

Black or grey or others

Usage:

wheelchair parts,mobility scooter parts

MOQ:

200pcs

Package:

carton and polybag

Loading port:

Xiamen

Brand name:

OEM



3. Solid Rubber Tire's Usage:

With its superior performance in the aspects of inflation free, good cushioning, noise reduction, high security,eco-friendly, maintenance free and durability etc, it is widely used in the filed of Wheelchairs, Mobility Scooters,Bicycles, strollers, electric scooters, tool carts and so on.


3 Electric Wheelchair Tire_副本.jpg



4. Poly Foam Filled Tire's Production Technology: SPIN-Cast Molding

The process of spin-cast molding is used to insert foam fill into tires. This process helps create a dense, firm tread area while keeping the sidewall area flexible. The distribution of the foam fill is even and accurate ensuring excellent shock absorption. This helps provide the user with a smooth ride, every time.

5 PU Filled Solid Rubber Tires.JPG


5. Aleader's Solid Tire's Tests

In our factory,we perform the following tests to ensure that all our products operate at good performance during their long service life:

1. Rolling Drum Test

2. Tension/Compression Force Analysis

3. Side Impact

4. Drop Testing

5. Static Load

6. Circle Track

7. Coefficient of Friction

8. Torque

9. Noise Test

10. Bump Test

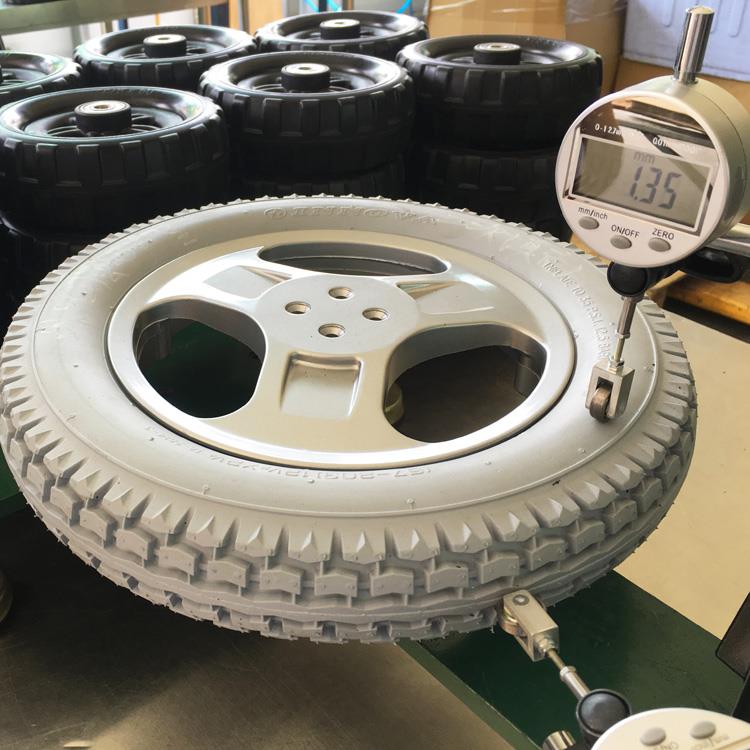

side impact testing


6. Packaging and Delivery

Packaging: 5 Layer packing carton or as per ur requirements.

For samples, we can deliver them to u by express via UPS, FEDEX, DHL etc.

For Bulk, we can deliver it to u by sea, air and so on as per your requirement.

Solid Tire Packaging


7. Our Company

Xiamen Aleader Tire & Wheel Technology Co., Ltd. was established in 2010, located in the beautiful coastal city of Xiamen, Fujian province.We are a professional manufacturer focused on the research and production of high performance PU tires.The company's main products are PU tires and PU foam filled solid tires etc.With the superior performance in abrasion proof, durability, high load capacity and  anti puncture, the PU tires are widely used in high-end market of wheelchairs, bicycles, strollers and engineering vehicles. Having a team with more than 15 years experience in the polyurethane field, we can ensure to provide u the most professional and good quality products and services. All of the products can meet the requirements of ISO7176 standard and have passed thetesting requirements of ROHS and REACH. Some of them can even meet the German GS standards for children's products.Our main markets are the United States, Britain, Germany, Canada, Japan and other countries and regions in the world.

PU Tire Factory

8. FAQ

Q:What Is Terms Of Your Payment?
A:Usually,We Accept T/T,For Regular Orders,We Prefer 30% Of Total Amount As Down Payment And the Balance Paid Before Delivery.


Q: Can i mix different products in one container?

A:Yes, any products can be matched.


Q: How does our factory carry out quality control?

A: Our QC always attach great importance to quality control from the very beginning to the end of the production. Each product will be carefully inspected before packed.


Q: Can you painting our logo?

A: No problem. Any products can be printed in your logo and brand.
