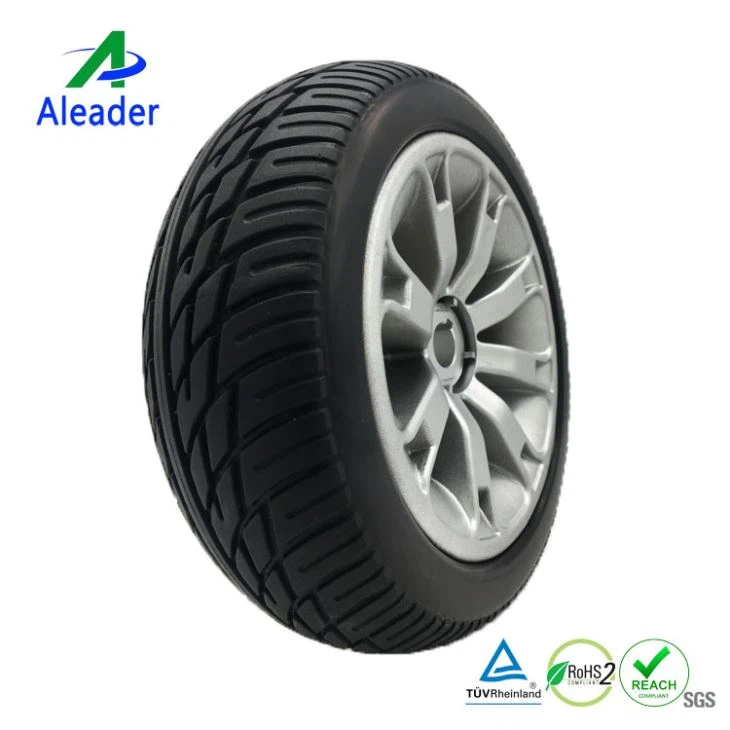

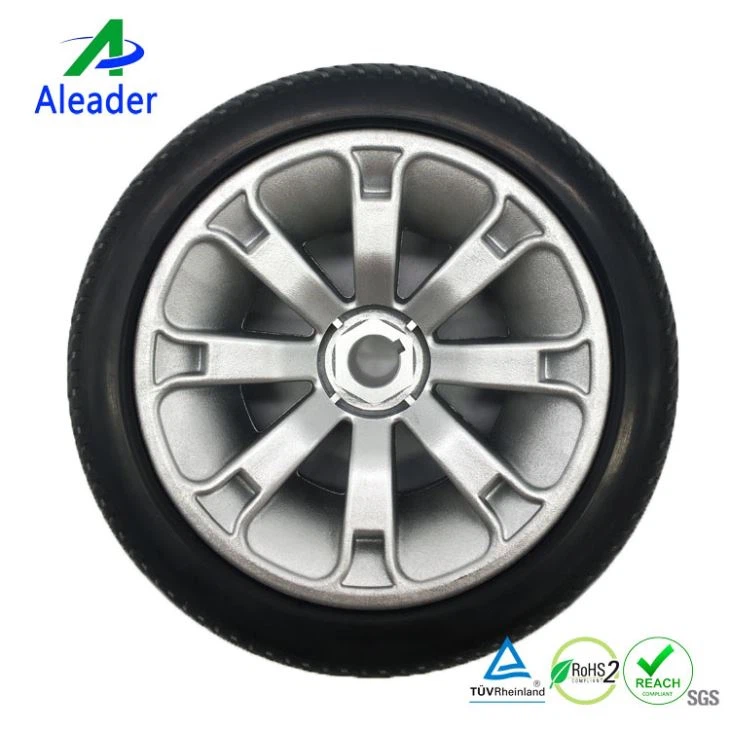

9 Inch Mobility Scooter Tyres

Tyre Material: Polyurethane
Size:9x3
Diameter:230mm
Width:75mm
Keyway:19-5x5
Hub Length: 45mm
Load Capacity: 65kg per wheel

Send InquiryChat Now
Product Details

1. Product Introduction of 9 Inch Mobility Scooter Tyres

9 Inch Mobility Scooter Tyre's secret is in the structure of the material. Thousands of microscopic, honeycomb-like cells are formed by a matrix of tough urethane elastomer. These tiny cells make the polyurethane tires lightweight and flexible, allowing them to compress and conform to road obstacles just like air-inflated tires.

Because these cells rely on structure and not air pressure for load support, they cannot leak or go flat, and never need to be pumped up or repaired. Nails, shards, or broken piece of glass may pose a threat to traditional tires but not our tires.  Hence, they are known as flat free polyurethane tires.


1 Polyurethane Solid Tires' Structure.jpg



2. Product Parameter(Specification)of 9 Inch Mobility Scooter Wheels

2 Polyurethane Wheels' construction.jpg


Product Name

9 Inch Mobility Scooter Tyres

Color

Grey/Black

Usage

Rear Wheel

Tire Material

PU

Rim Material

PA+15%GF

Tread


Tire hardness(HA)

75±5

Wheel OD (mm)(B)

230

PU Tire Weight(g)

920

Tire Width(mm)(A)

75

Wheel Weight(g)

1650

Keyway(mm)(C)

19-5x5

Hub Length(mm)(E)

45


3.Polyurethane Tire's Features and Advantages

A. Maintenance Free: The Poly tire is solid structure and not air pressure for load support.They cannot leak or go flat, and never need to be pumped up or repaired.

B. Inflation-free: The PU Tires are non-pneumatic tires keeping users away from the worries of flat tire,air leakage.

C. Can be customized: Since polyurethane is produced chemically,a number of variations are possible.The density and physical characteristics of the material can be modified according to the end use.

D. Appearance: For the style-conscious, the tires can be made in any color.



4.Polyurethane Tires’ Production Technology: SPIN-Cast Molding

The process of spin-cast molding is used to insert foam fill into tires. This process helps create a dense, firm tread area while keeping the sidewall area flexible. The distribution of the foam fill is even and accurate ensuring excellent shock absorption. This helps provide the user with a smooth ride, every time.

The Spinning Mold

5. Certificates

All of the products can meet the requirements of ISO7176 standard and have passed the testing requirements of ROHS and REACH. Some of them can even meet the German GS standards for children's products.

4 polyurethane Tires' certificate.jpg



6. Packaging and Delivery

Packaging: generally, we pack 10pcs to an export carton. We can also pack as per ur requirement.

Shipping: by sea, by air, or international express.

5 delivery and packaging.jpg

7. About Our Company

Xiamen Aleader Tire & Wheel Industrial Co., Ltd. was established in 2010, located in the beautiful coastal city of Xiamen, Fujian province.We are a professional manufacturer focused on the research and production of high performance PU tires.The company's main products are PU tires and PU foam filled solid tires etc.With the superior performance in abrasion proof, durability, high load capacity and  anti puncture, the PU tires are widely used in high-end market of wheelchairs, bicycles, strollers and engineering vehicles. Having a team with more than 15 years experience in the polyurethane field, we can ensure to provide u the most professional and good quality products and services. All of the products can meet the requirements of ISO7176 standard and have passed the testing requirements of ROHS and REACH. Some of them can even meet the German GS standards for children's products.Our main markets are the United States, Britain, Germany, Canada, Japan and other countries and regions in the world.

PU foam Machine (1)

PU Foam Machine

Factory's Machine

8. FAQ

Q1.What is the MOQ I can order?
For PU solid tire, MOQ is 300pcs.

For foam filled tire, around 200pcs.


Q2.What is your production delivery time?
20-25 days once we received ur deposit.


Q3: Can we change the hardness of the tyre?

Yes, we can changed the hardness of the tyre as per ur requirement.


Q4:The wheels can do I like the color?

Yes, any color can do


Q5. What is the maximum load capacity ur wheel can do?

We can customize the wheels to bear around 500kg per wheel.
