8 Inch Mobility Scooter Wheels

1. Product Introduction Polyurethane Solid Tire, simply called PU Tire, has one kind of solid structure. Its main material is microcellular polyurethane elastomer. With the superior performance in the aspects of inflation free, good cushioning, noise reduction, high security,eco-friendly,...

Send InquiryChat Now
Product Details

1. Product Introduction

Polyurethane Solid Tire, simply called PU Tire, has one kind of solid structure. Its main material is microcellular polyurethane elastomer. With the superior performance in the aspects of inflation free, good cushioning, noise reduction, high security,eco-friendly, maintenance free and durability etc, it is widely used in the filed of Wheelchairs, Mobility Scooters,Bicycles, strollers, electric scooters and so on.

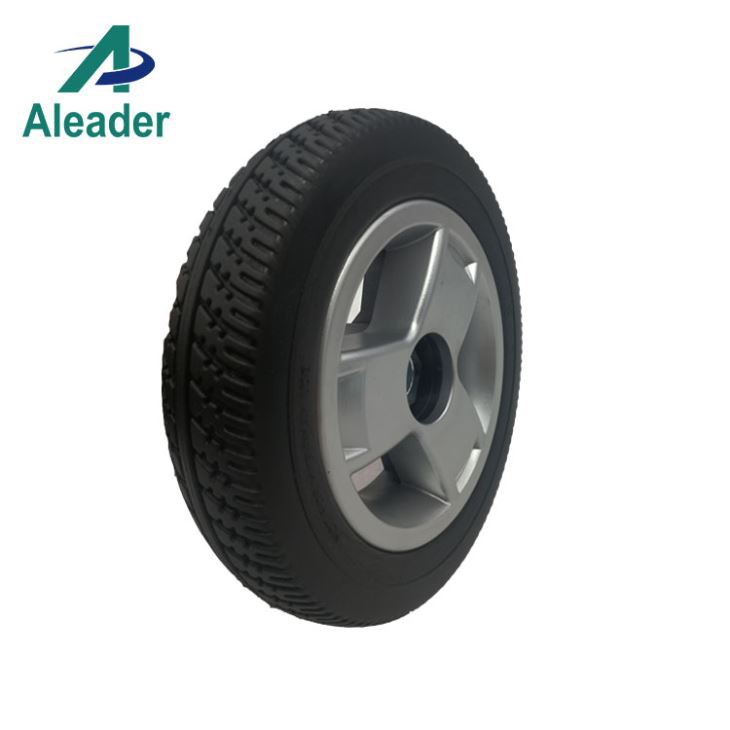

1 solid tires wheelchair tires.jpg



2. Product Parameter(Specification)of 8 Inch Mobility Scooter Wheels

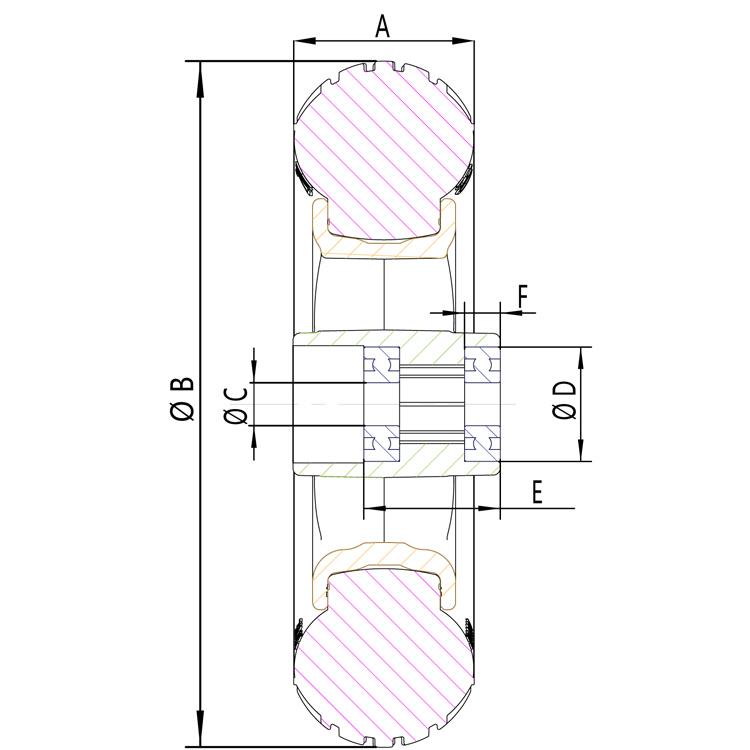

2 Mobility ScooterWheels' construction.jpg



Product Name

8 Inch Mobility Scooter Front Wheels

Color

Grey/Black

Usage

Front Wheel

Tire Material

PU

Rim Material

PA+15%GF

Tread


Tire hardness(HA)

80±5

Wheel OD(mm)(B)

193

PU Tire Weight(g)

480±20

Tire Width(A)(mm)

49

Wheel Weight(g)

780±20

Axle Size(mm)(C)

12/15

Hub Length(mm)(E)

40



Product Name

8 Inch Mobility Scooter Rear Wheels

Color

Grey/Black

Usage

Rear Wheel

Tire Material

Polyurethane

Rim Material

PA+15%GF

Tread


Tire hardness(HA)

80±5

Wheel OD (mm)(B)

193

PU Tire Weight(g)

480±20

Tire Width(A)(mm)

49

Wheel Weight(g)

835±20

Axle Size(mm)(C)

19-5*5

Hub Length(mm)(E)

38



3. Polyurethane Tire’s Features and Advantages

A. Safety: Polyurethane Tire, with its solid structure, keeping users away from the worries of flat tire,air leakage,punctured easily and frequent maintenance, provides users a safe and convenient experience.

B. Can be customized: Since polyurethane is produced chemically,a number of variations are possible.The density and physical characteristics of the material can be modified according to the end use.

C. Balance: The tires are perfectly round and uniform when manufactured.

D. Wet Floor Conditions: polyurethane tires have to be siped to secure reliable traction. Siped is the process of making small, angular cuts across the treads. While rubber is better for moist floors, it loses efficiency in load-bearing capabilities, so siped poly treads solves the problem without compromising load-bearing benefits.

E. Maintenance Free: The Poly tire is solid structure and not air pressure for load support.They cannot leak or go flat, and never need to be pumped up or repaired.



4. 8 Inch Mobility Scooter Wheels’ Production Flow:



5. Aleader's PU Tires' Tests

In our factory,we perform the following tests to ensure that all our products operate at good performance during their long service life:

Rolling Drum Test

Tension/Compression Force Analysis

Side Impact

Drop Testing

Static Load

Circle Track

Coefficient of Friction

Torque

Noise Test

Bump Test



4  Flat Free tires' Test(001).jpg


6. Certificates

All of the products can meet the requirements of ISO7176 standard and have passed the testing requirements of ROHS and REACH. Some of them can even meet the German GS standards for children's products.

4 polyurethane Tires' certificate.jpg



7.Our service:

Enjoy Our One-stop Service

We can provide each customer with purchasing, logistics, producing, quality control, documentations and product warranty.



OEM/ODM Capability

We have capability to design and produce a wide range of new models according to customers' requirements. But some models have to be asked for moulds charge.



Quality Items with Warranty

Almost of our models, we can provide one year warranty, and spare parts.



8.Packaging and Delivery

For samples, we can deliver them to u by express via UPS, FEDEX, DHL etc.

For Bulk, we can deliver it to u by sea, air and so on as per your requirement.


5 packaging.jpg


9.FAQ

Q1. Can I design the packaging for my products?

Yes, packaging can be printed with your logo and your local language.

Q2: What is the warranty for your products?

Our warranty is one year for the main frame.

Q3: What certificates do you have ?

ROHS 2.0, Reach SVHC, PAHS, Phthalate 6P by SGS.

Q4: What is the payment terms of your company ?

T/T, Irrevocable L/C at sight, Paypal, Western union.

Q5:If I want to be your distributor ,what can you give me ?

Firstly, Small quantity for marketing try .

Secondly, research, delivery and production support .

Thirdly , Customized design for your market .

We can have a happy cooperation and earn money together !
